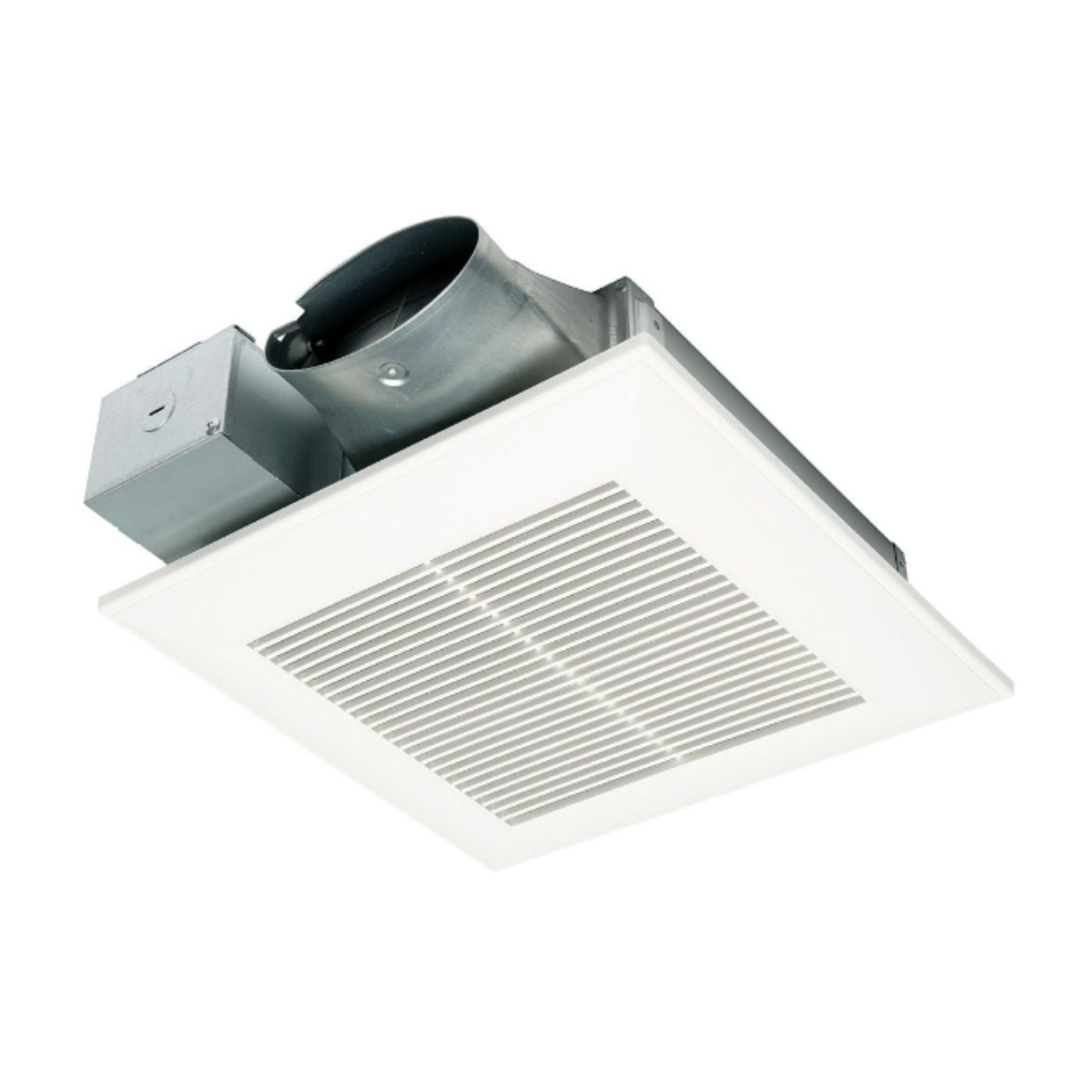

WhisperValue® DC™ Pick-a-Flow™, 50-80-100 CFM - 0.8 Sones - Energy Star®
WhisperValue® DC™ Pick-a-Flow™, 50-80-100 CFM - 0.8 Sones - Energy Star®
Model No. FV-0510VS1
SHIPS IN: 24 - 48 HOURS
Couldn't load pickup availability


Free Shipping On Orders Over $49
Placing an order over $49, qualifies for FREE UPS Delivery. Items over 100lbs shipped via semi truck, be sure to select "Lift Gate" to lower the product to ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.- Product Catalog
- Submittal Sheet
- Architectural Specifications
- Installation Manual (English)
- Installation Manual (Spanish)
WhisperValue® DC™ is the lowest profile ENERGY STAR® rated ventilation fan available. Ideal for residential construction (Single; Multi-Family) and Manufactured Homes. It features Panasonic’s revolutionary ECM motor with SmartFlow™ optimum CFM technology, and incorporates a Pick-A-Flow™ airflow selector switch to customize airflow (50, 80 or 100 CFM).
- Precision spot ventilation fan, ideal for residential construction (single and multifamily) and manufactured homes
- Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
- Pick-A-Flow™ Airflow Selector – one fan, you choose the CFM (50, 80 or 100 CFM)
Air Volume Exhaust (CFM) 50 @ 0.1" SP, 53 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 100 @ 0.25" SP
Master Carton Dimensions (HxWxD) 6.89 x 14.25 x 16.73
CFM 50-70. 80-110
Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
Construction Type Single Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling.
Current (Amps) 50 CFM= .09A, 80 CFM= .13A, 100 CFM=.20A
Ventilation Design Approach Continuous Ventilation. Spot Ventilation
Duct Diameter 4" Oval
Energy Efficiency (CFM/Watt) 50 CFM= 12.8 CFM/W, 80 CFM=11.4 CFM/W, 100 CFM = 9.2 CFM/W
ENERGY STAR® Certified Yes
Fan Type Fan Only
Grille Size (in sq.) 13"
Industry Residential. Light Commercial
Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
Motor Type (AC/DC) DC
Mounting Opening (in sq.) 10-1/2"
Mounting Options Ceiling Mount (UL). Wall Mount (UL). Tub/Shower (UL)
Noise (Sones) 50 @ 0.1" SP = < 0.3, 53 @ 0.25" SP = 0.5, 80 @ 0.1" SP = less than 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 100 @ 0.25" SP = 1.3
Power Consumption (Watts) 50 CFM= 4.4W, 80 CFM= 7.2W, 100 CFM=11.1W
Power Rating (V/Hz) 120/60
Product Family Name WhisperValue DC
Radiation Damper Available Yes
UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
Warranty 6 year DC Motor, 3 Year Parts
Master Carton Gross Weight (lbs.) 8.82
