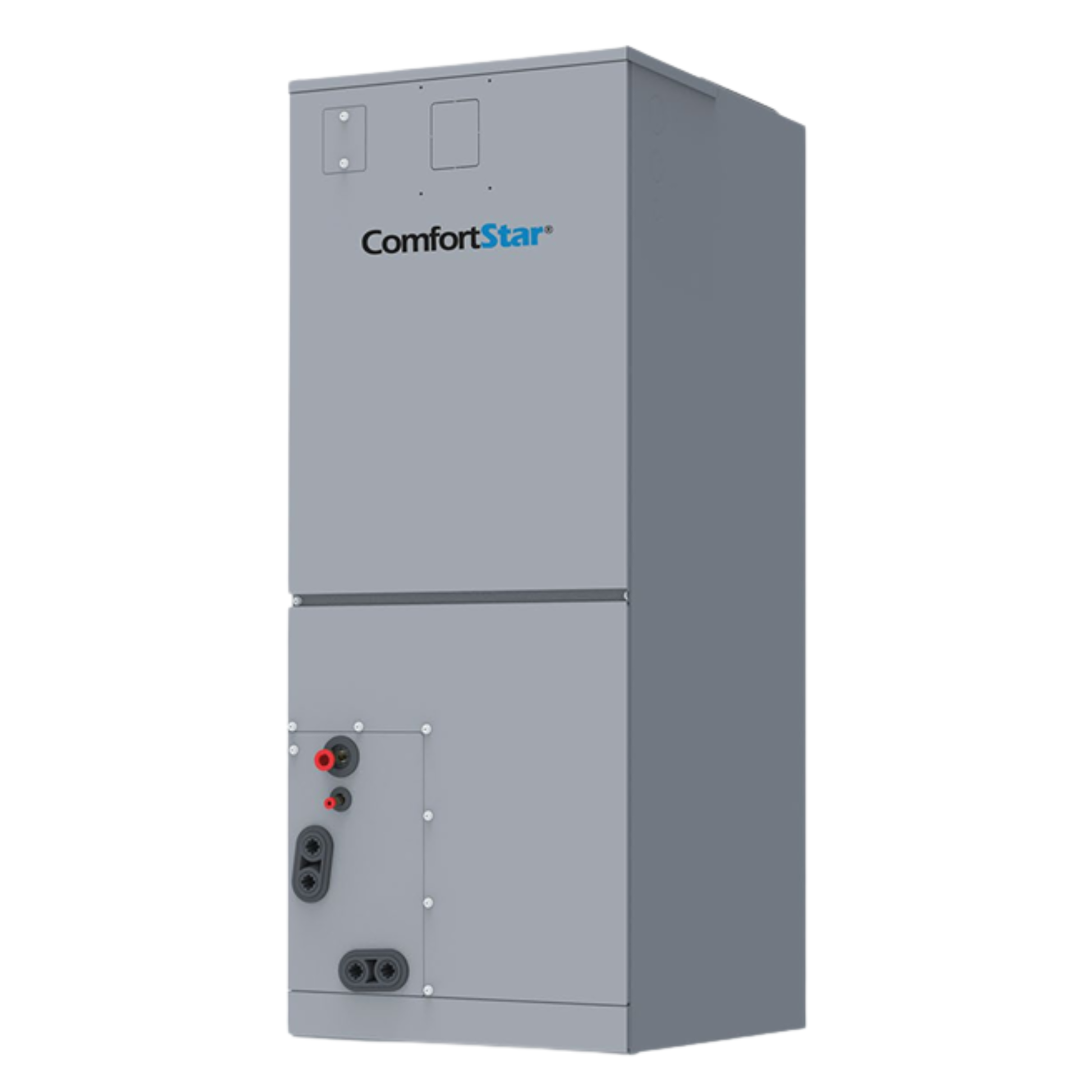

60K AHH32 HIGH EFFICIENCY AIR HANDLER - 17.7 SEER2

The ComfortStar AHH32-60 is matched with the MRH32-60 heat pump condensing unit. The MRH32-60 / AHH32-60 matched system has a SEER2 rating of 17.7, with a rated cooling capacity of 54,000 BTU/h and a rated heating capacity of 54,000 BTU/h at 47°F.

AHH32 Series Features:
• Real-Time Leak Monitoring: Continuously detects refrigerant leakage to ensure safe system operation.
• RS485 Communication With Indoor PCB: When a leak is detected, the system immediately stops the compressor to prevent refrigerant from flowing into the indoor space.
• Continuous Indoor Fan Operation: The indoor fan remains running to maintain airflow, helping reduce the concentration of R32 refrigerant in the room to a safe level.
• DC Inverter Compressor System: Works together with a high-precision temperature sensor and a thermostatic expansion valve to deliver accurate capacity adjustment and maintain a stable room temperature.
• ECM Fan Motor: Low-noise, constant-torque motor creates a quiet and comfortable indoor environment.
• High Static Pressure: Up to 0.8" w.g. (200 Pa), enabling longer duct runs and greater installation flexibility.
• Long Duct Capability: Supports duct lengths up to 82 ft (25 m), ideal for larger homes.
• Whole-Home Comfort: A single unit connected to the duct system can efficiently meet the cooling and heating needs of all rooms.
