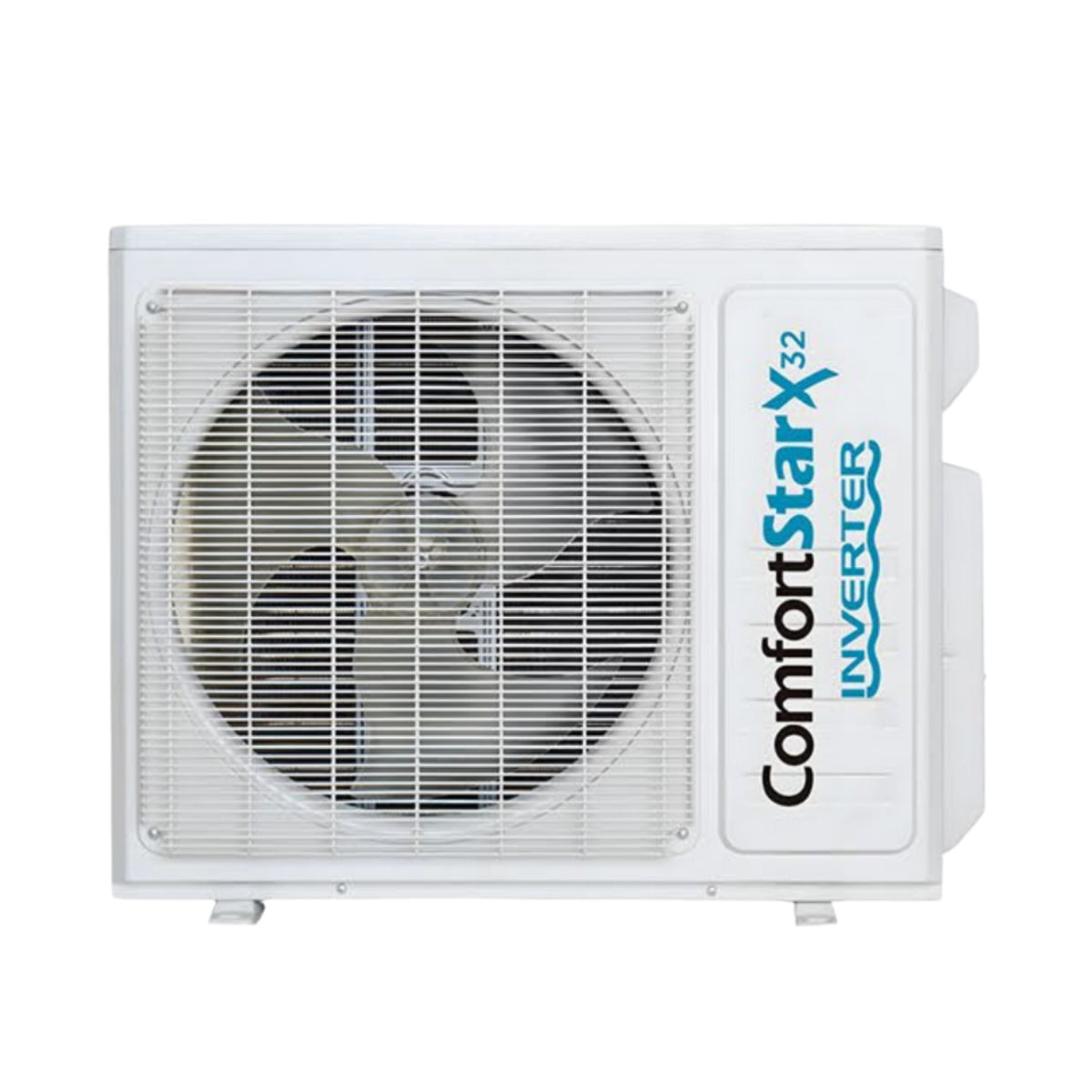

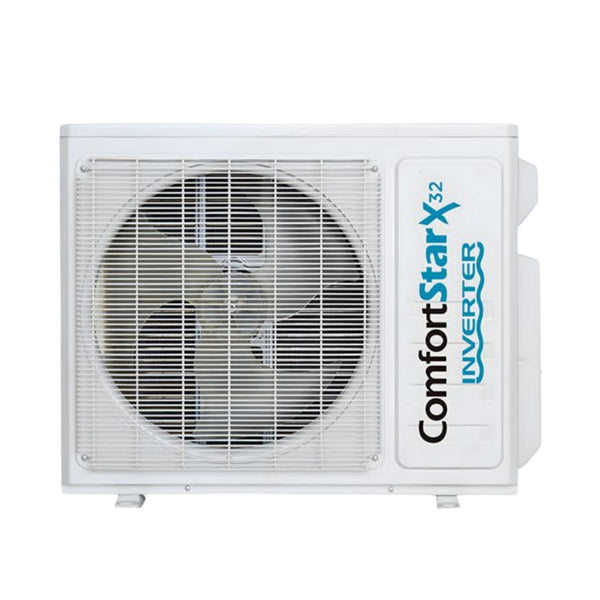

ComfortStar X32 inverter 27,000 BTU dual-zone outdoor condensing unit for C32-MZ multi-zone mini split systems.
Note: This is an individual outdoor unit designed specifically for use with ComfortStar multi-zone indoor units. It is not advisable to pair this unit with outdoor condensing units from other brands, as the algorithms that facilitate their connection and communication are tailored to work exclusively with ComfortStars indoor units. To explore all available options, please select the Multi-zone filter in the Ductless Mini-Split Systems category.

COMFORTSTAR

27,000 BTU Tri Zone Heat Pump Condenser – Inverter High-Efficiency Multi-Zone Mini Split System | Up to 22 SEER2 | Voltage 230V | (Unit Only for Multi-Zone System)

Model No. C32-MZ-3

SHIPS IN: 24 - 48 HOURS

Works in outdoor temperatures
as low as -13°F.

Specifications:

Type: Outdoor Unit
Operating Mode: Heating and Cooling
Refrigerant Type: R32
Size (W x D x H): 35.94/14.76/26.34
Outdoor Ambient Temperature: -13°F
SEER2: 22
Average Coverage Area: Up to 900ft²
Combination Table

View More

$2,070.00 USD
$1,508.47 USD $2,070.00 USD
Shipping calculated at checkout.
Found it for less? We’ll do better.
Free Shipping On Orders Over $49
Product Catalog C32-MZ-CH20 Eco Smart Series Service Manual Installation Manual for C32-MZ Heat Pump Condensing Unit  C32-MZ-3 (42W) Spare Parts  C32-MZ-3 (42W) Submittal  C32-MZ-3 (42W) AHRI Certificate  C32-MZ-3 (42W) Energy Guide

The ComfortStar C32-MZ-3 is a 27,000 BTU multi-zone outdoor unit designed for use with compatible ComfortStar C32-MZ multi-zone mini-split systems. Its flexible configuration allows multiple indoor units to operate from a single outdoor unit, delivering heating and cooling to different rooms or areas without requiring traditional ductwork.

As part of a compatible C32-MZ system, the C32-MZ-3 supports independent temperature control across individual zones, making it a practical solution for homes and buildings with different comfort needs. Indoor units are sold separately and must be selected according to the C32-MZ Combination Table.

Key specifications

  • Nominal Capacity: 27,000 BTU

  • Unit Type: Multi-zone outdoor unit

  • System Type: C32-MZ Multi-Zone

  • Application: Heating + cooling

  • Configuration: Ductless multi-zone outdoor unit

  • Model: C32-MZ-3

  • Indoor Units: Sold separately; refer to the C32-MZ Combination Table

🌟 ComfortStar 27K Multi-Zone Outdoor Heat Pump for Up to 3 Zones

✅ 28,000 BTU Rated Cooling Capacity (Non-Ducted Configuration)
✅ 28,000 BTU Rated Heating Capacity (Non-Ducted Configuration)
✅ Up to 3 Independently Controlled Zones
✅ 22 SEER2 Efficiency (Non-Ducted Configuration)
✅ HSPF2 Region IV: 10 (Non-Ducted Configuration)
✅ R32 Refrigerant
✅ Low-Ambient Heating Operation Down to -13°F
✅ Outdoor Noise Level: 61 dB(A)
✅ Minimum Circuit Ampacity: 16 A
✅ Maximum Fuse Size: 25 A
✅ 208/230V, 60Hz, 1Ph Power Supply
✅ Please see the C32-MZ Combination Table to confirm compatible indoor units and system configurations.
