18,000 BTU Cooling + Heating - Wall Mounted Ductless Mini Split Air Conditioner Heat Pump – 21.7 SEER2 Energy-Efficient, Voltage 230V

COMFORTSTAR

18,000 BTU Cooling + Heating - Wall Mounted Ductless Mini Split Air Conditioner Heat Pump – 21.7 SEER2 Energy-Efficient, Voltage 230V

Model No. CHF3-18CD

SHIPS IN: 24 - 48 HOURS

Works in outdoor temperatures

as low as -22°F.

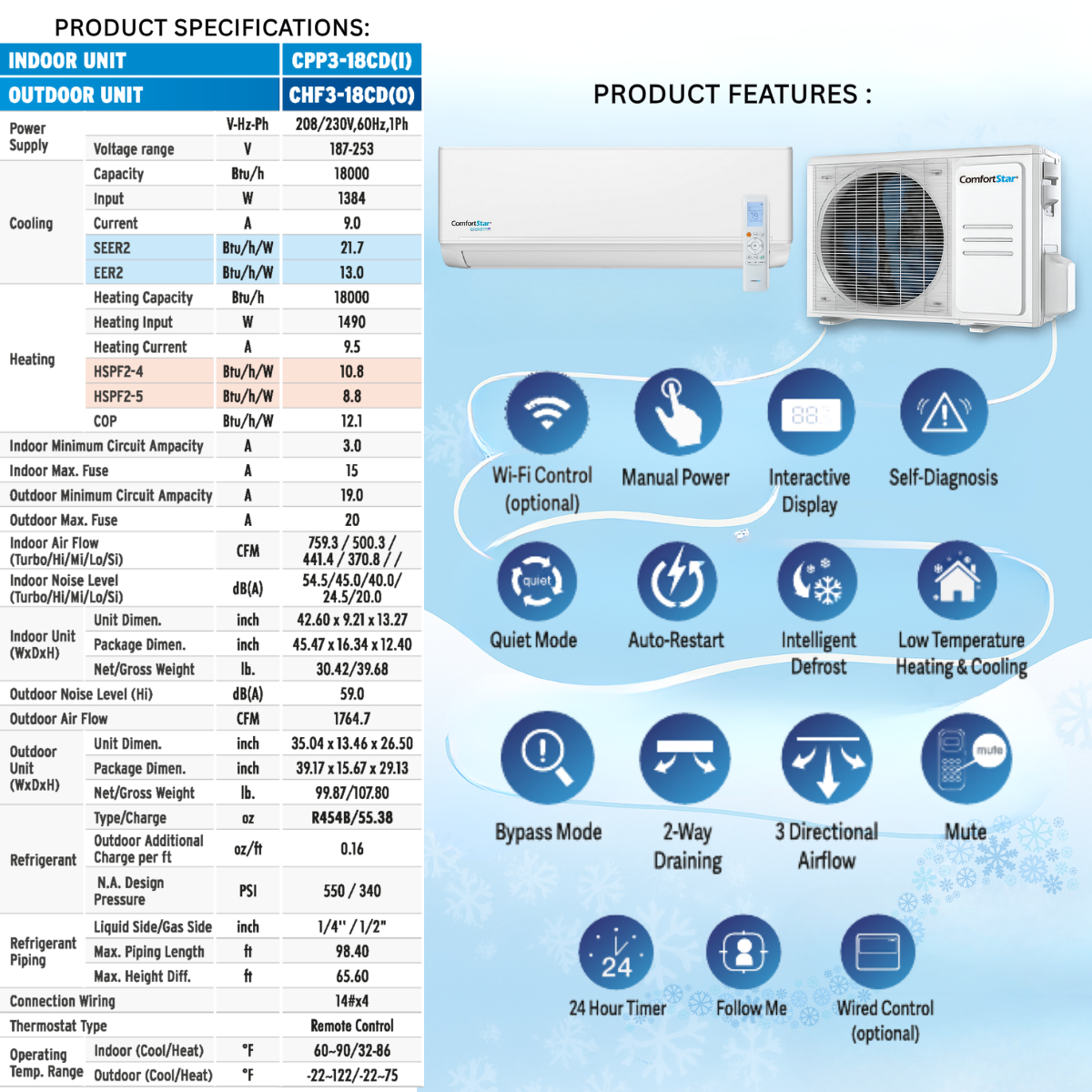

Specifications:

Type: Wall Mount

Operating Mode: Heating and Cooling

Refrigerant Type: R454B

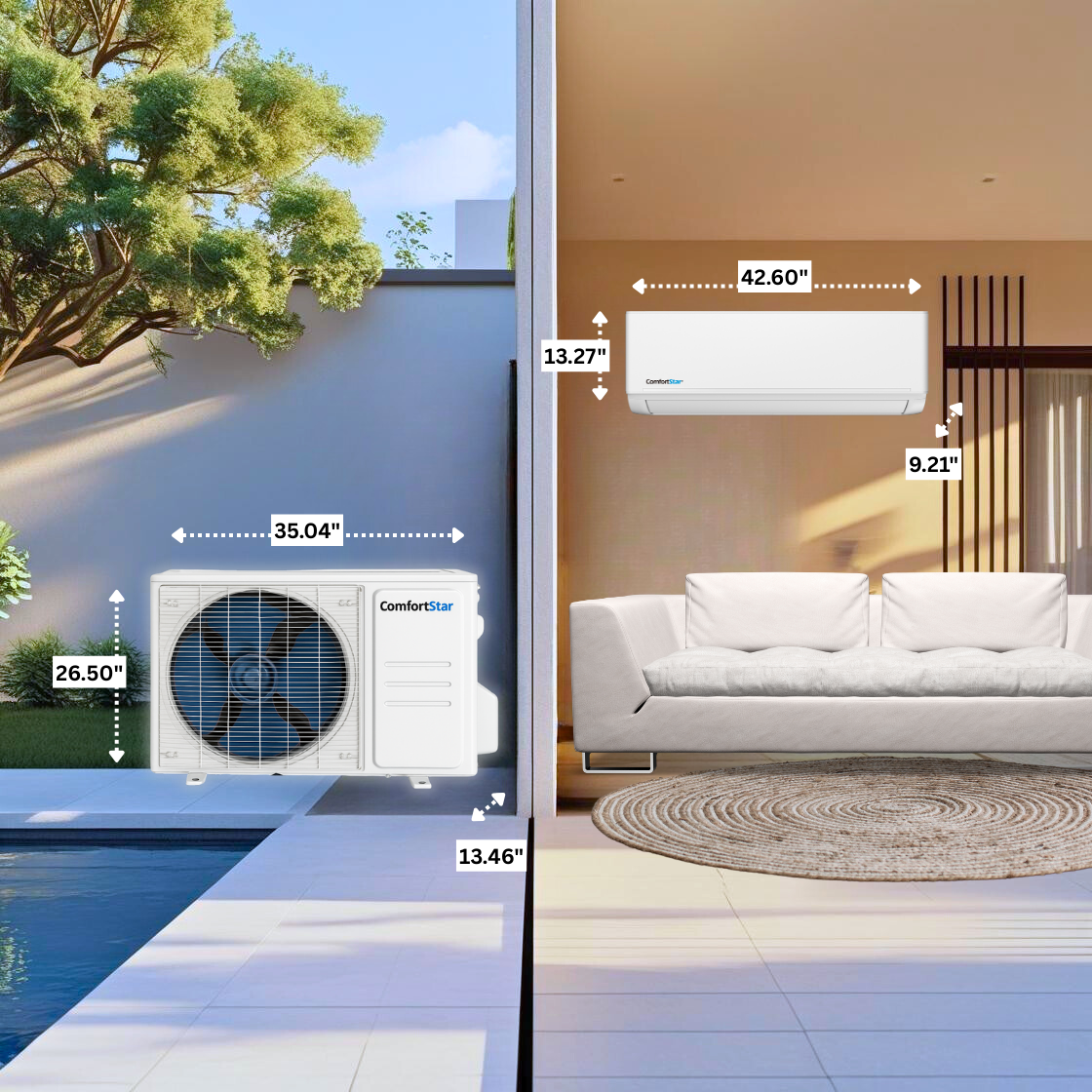

Size (W x D x H): Indoor - 42.60"x9.21"x13.27"
Outdoor - 35.04"x13.46"x26.50"

Outdoor Ambient Temperature: -22°F

SEER2: 21.7

Average Coverage Area: Up to 600ft²

$1,803.42 USD

~~$2,140.00 USD~~ $1,803.42 USD

Shipping calculated at checkout.

Product variants

Quantity

Product Catalog Owners & Installation Manual Service Manual Indoor Spare Parts Outdoor Spare Parts Submittal AHRI Certificate Energy Guide

The ComfortStar CHF3-18CD is an 18,000 BTU ductless mini split heat pump that heats and cools larger spaces at a high 21.7 SEER2 — ENERGY STAR® certified for serious energy savings. Running on 230V, this single-zone wall-mounted system covers rooms up to roughly 600–800 sq ft, including light commercial spaces, and delivers exceptional cold-climate heating down to -22°F. Inverter operation keeps comfort quiet and steady year-round.

Key specifications

Capacity: 18,000 BTU cooling + heating (heat pump)
Efficiency: 21.7 SEER2 — ENERGY STAR® certified
Voltage: 230V
Configuration: Single-zone, wall-mounted
Coverage: Up to ~600–800 sq ft (light commercial capable)
Low-temp heating: Operates to -22°F
Model: CHF3-18CD

Backed by free shipping and genuine OEM parts support. High-efficiency systems like this may qualify for federal or local energy rebates.

❄️ Works Even in Extreme Cold: Stay warm even when it’s freezing outside — this unit heats and cools in temps as low as -22°F!
🔘 Manual ON/OFF Switch: No remote? No problem. Just press the power button on the indoor unit to turn it ON or OFF.
📊 Smart Display Features - The display shows: ✔️ Error codes if something's wrong ✔️ A clean filter alert ✔️ Leak detection alerts ✔️ When it’s in auto defrost mode
🧠 Self-Diagnosis = Protection: If it senses something unusual, the unit will pause to protect itself and display an error code.
🚨 Bypass Mode Keeps It Running: If a small part (like a sensor) has an issue, it keeps working so you stay comfortable.
💧 Flexible Drain Options: You can install the drain hose on the left or right side for easier setup.
🌬️ 3D Airflow Coverage: Air flows in three directions, reaching every corner of the room.
🔇 Quiet Mode: Turn on mute to silence beeps from the remote control.
📍 “Follow Me” Temperature Sensor: The remote senses the room temperature where you are, not just at the indoor unit — for more accurate comfort.
🕹️ Easy-to-Use Controls: - Wired control available (optional) - WiFi control with built-in Cool Link (optional)

📦 What’s Included in Your Complete Mini-Split Bundle:
1x Indoor High-Wall Air Handler – Sleek, modern design for quiet, efficient comfort.
1x Outdoor Condensing Unit – Durable and built for powerful performance.
📲 Remote Control – Convenient temperature control from anywhere in the room.
🎯 1 Roll of PVC Wrap (No Adhesive) – Cleanly conceals and protects your refrigerant lines.
🧱 8 oz. Sealing Clay – Creates an airtight, weather-resistant seal around the line set.
🛡️ 1 Wall Bushing Cover – Neatly finishes the wall penetration for a clean, professional look.
🦶 (4) Heavy-Duty Mounting Pads – Secures your outdoor unit with stability and vibration reduction.
✅ Everything you need for a smooth install—right in the box.
