Specifications table for the ComfortStar T1W3-18CD(I) one-way cassette and CPP3-18CD(O) outdoor unit combination.

COMFORTSTAR

18,000 BTU Cooling + Heating -1-Way Ceiling Cassette Mini Split Air Conditioner Heat Pump - Up to 22.2 SEER2

Model No. CPP3W-18CD

SHIPS IN: 24 - 48 HOURS

Works in outdoor temperatures
as low as -13°F.

Specifications:

Type: Wall Mount
Operating Mode: Heating and Cooling
Refrigerant Type: R454
Size (W x D x H):
Indoor - 50.31" x 13.19" x 8.98"
Outdoor - 35.04" x 13.46" x 26.50"
Outdoor Ambient Temperature: -13°F
SEER2: 22.2
Average Coverage Area: Up to 600ft²

View More

$1,870.70 USD
$1,265.00 USD $1,870.70 USD
Shipping calculated at checkout.
Found it for less? We’ll do better.
Free Shipping On Orders Over $49
Product Catalog Service Manual Installation Manual Indoor Spare Parts Outdoor Spare Parts Submittal AHRI Certificate  Energy Guide

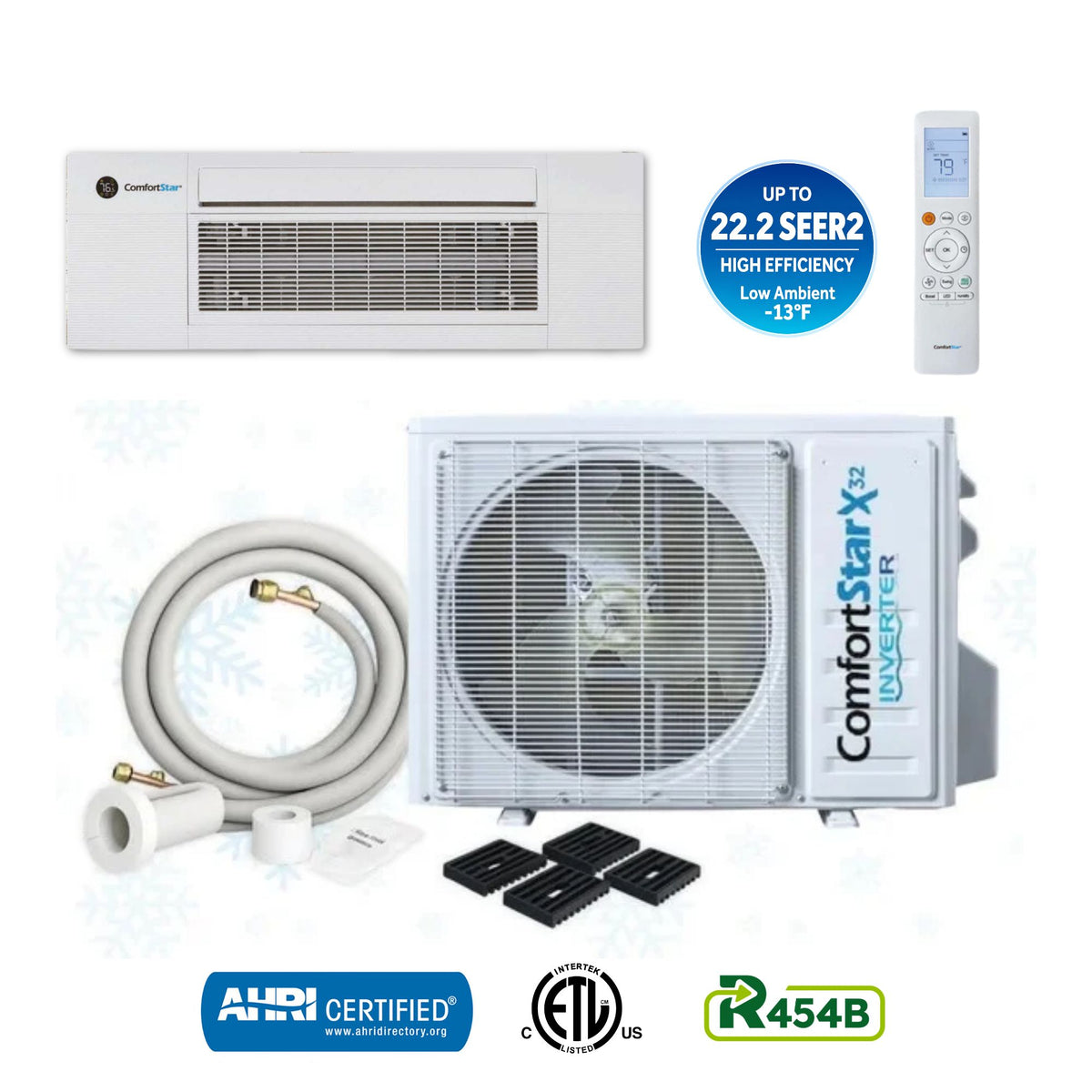

The ComfortStar T1W3-18CD(I) + CPP3-18CD(O) is an 18,000 BTU one-way ceiling cassette heat pump system designed to deliver year-round heating and cooling without requiring a traditional wall-mounted indoor unit. Its ceiling-mounted one-way cassette provides a clean, discreet installation while directing conditioned air into the space from above.

Using R454B refrigerant and paired with the CPP3 outdoor heat pump, this single-zone system combines higher-capacity heating and cooling with the space-saving advantages of a ceiling cassette.

Key specifications

  • Cooling Capacity: 18,000 BTU
  • Refrigerant: R454B
  • Voltage: 208/230V
  • Configuration: Single-zone, one-way ceiling cassette
  • System Type: Heat pump – cooling + heating
  • Indoor Unit: T1W3-18CD(I)
  • Outdoor Unit: CPP3-18CD(O)

🌟 ComfortStar 18K One-Way Cassette Heat Pump System – 22.2 SEER2
Space-Saving Ceiling Comfort. High-Efficiency Heating and Cooling.

✅ 18,000 BTU Cooling Capacity: Designed to cool a single room or zone.
✅ 18,000 BTU Heating Capacity: Provides heat-pump comfort during cooler weather.
✅ Estimated Coverage Up to 1,000 sq. ft.: Coverage is an estimate and varies by insulation, ceiling height, sun exposure, and other load conditions.
✅ 22.2 SEER2 Efficiency: High-efficiency performance for year-round comfort.
✅ R454B Refrigerant: Uses next-generation R454B refrigerant.
✅ One-Way Ceiling Cassette: A low-profile indoor unit designed to fit between I-joist and traditional joist spacing.
✅ Built-In Condensate Pump: Supports condensate drainage from the indoor unit.
✅ Humidity Sensor: Supports system humidity monitoring.
✅ Refrigerant Leakage Detection Sensor: Adds an additional layer of system monitoring.
✅ Adjustable Fan Speed: Fan speed stages from 1–100%.
✅ Low-Ambient Heating: Outdoor heating operation down to -13°F.
✅ 208/230V Power: Designed for 208/230V, 60Hz, single-phase power.
