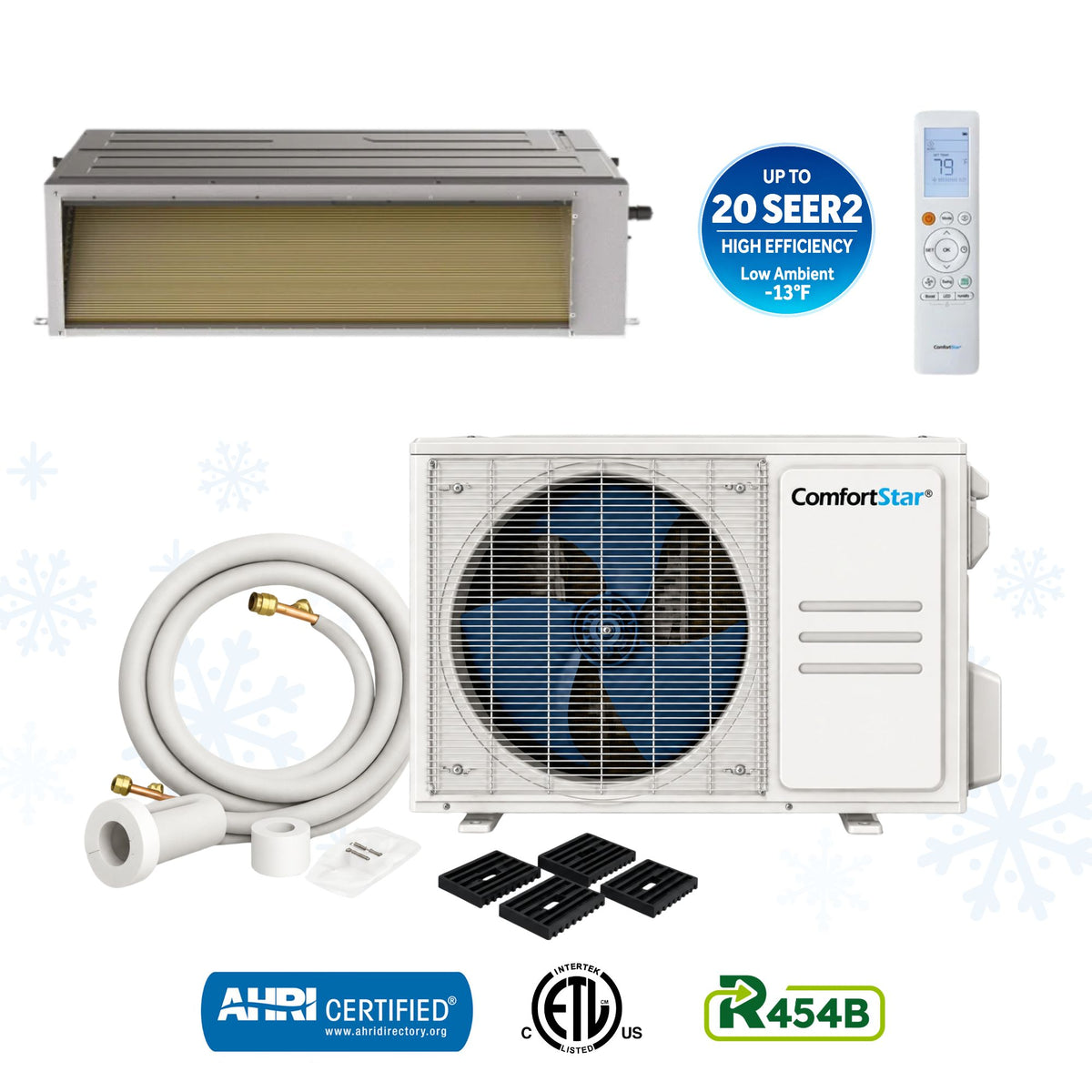

ComfortStar 12,000 BTU mini-split heat pump system with CPAH3 indoor fan coil and matched CPP3 outdoor unit.

COMFORTSTAR

12,000 BTU Cooling + Heating Fan Coil Mini Split Air Conditioner Heat Pump - Up to 19.5 SEER2

Model No. CPP3CH-12CD

SHIPS IN: 24 - 48 HOURS

Works in outdoor temperatures
as low as -13°F.

Specifications:

Type: Fan Coil
Operating Mode: Heating and Cooling
Refrigerant Type: R454
Size (W x D x H):
Indoor - 27.56" x 29.53" x 9.65"
Outdoor - 30.12" x 11.93" x 21.85"
Outdoor Ambient Temperature: -13°F
SEER2: 19.5
Average Coverage Area: Up to 300ft²

View More

$1,568.70 USD
$1,265.00 USD $1,568.70 USD
Shipping calculated at checkout.
Found it for less? We’ll do better.
Free Shipping On Orders Over $49
Product Catalog Service Manual Installation Manual Indoor Spare Parts Outdoor Spare Parts Submittal AHRI Certificate  Energy Guide



The ComfortStar CPA3H-12CD(I) + CPP3-12CD(O) is a 12,000 BTU concealed duct heat pump system that delivers year-round heating and cooling while keeping the indoor unit hidden from the occupied space. Conditioned air is distributed through connected ductwork and vents, helping preserve a clean interior appearance.

Using lower-GWP R454B refrigerant and paired with the CPP3 outdoor heat pump, this single-zone system combines comfortable heating and cooling with a discreet ducted design.

Key specifications

  • Capacity: 12,000 BTU
  • Refrigerant: R454B
  • Voltage: 208/230V
  • Configuration: Single-zone, concealed duct fan coil
  • System Type: Heat pump – cooling + heating
  • Indoor Unit: CPA3H-12CD(I)
  • Outdoor Unit: CPP3-12CD(O)

🌟 ComfortStar CPA3H 18K Light Commercial Fan Coil System – 20.0 SEER2

The ComfortStar CPA3H-18CD(I) paired with CPP3-18CD(O) is a 17,500 BTU light commercial indoor fan coil system. The catalog lists 20,000 BTU/h heating capacity, 20.0 SEER2 efficiency, R454B refrigerant, and 208/230V, 60Hz, single-phase power.

✅ Compatible With Horizontal and Vertical Installation (Optional)
✅ Four Static Pressure Setting Stages
✅ Refrigerant Leakage Detection Sensor
✅ Constant Airflow
✅ Built-in Pump
✅ I-Clean
✅ Fan Speed Stages: 1–100%
✅ Outdoor Operating Temperature Range: -13°F to 122°F cooling; -13°F to 75°F heating

System Configuration: CPA3H-18CD(I) indoor unit + CPP3-18CD(O) outdoor unit.
